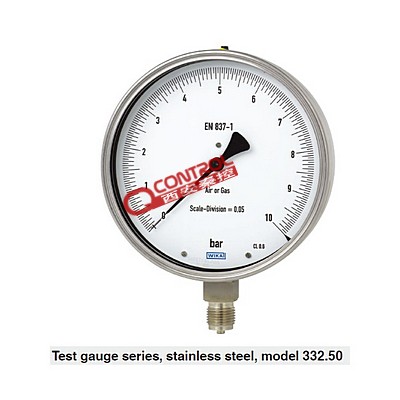

333.50.160 wika不锈钢耐震压力表EN 837-1 wika
发布日期：2018-06-05 浏览次数：345
333.50.160 wika不锈钢耐震压力表EN 837-1 wika
wika 33X.50压力表常用型号
332.50.160 -0.1/+1 MPa 1/4 NPT lower mount
332.50.160 0.6 MPa 1/2 NPT lower mount
332.50.160 1 MPa 1/2 NPT lower mount
332.50.160 1.6 MPa 1/2 NPT lower mount
332.50.160 25 MPa 1/2 NPT lower mount
332.50.160 25 MPa 1/4 NPT lower mount
333.30.160 0.1 MPa 1/2 NPT lower mount
333.30.160 0.6 MPa 1/2 NPT lower mount
333.50.160 1.6 MPa 2nd scale psi 1/2 NPT lower back mount
333.50.160 -100/+1000 kPa 1/2 NPT lower mount
332.20wika压力表参数
设计：符合EN 837-1标准
标准尺寸 (mm)：160
准确度等级：0.6
量程：0 ... 0.06至0 ... 160 MPa或所有其他同等负压量程或正压和负压联程
调整介质
≤ 2.5 MPa：气体
> 2.5 MPa：液体
