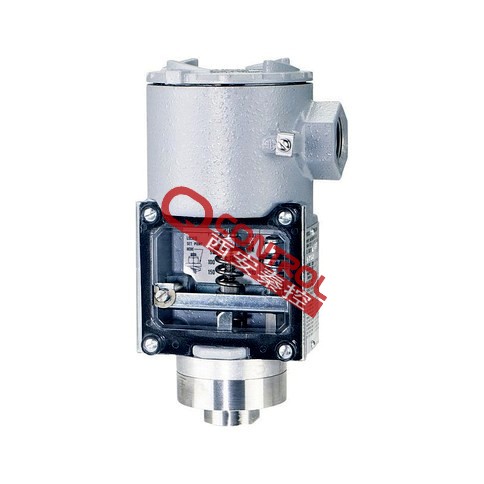

SA1112E-S5-K2 美国德威尔隔爆压力开关 dwyer压力开关西安

SA1100系列膜片式压力开关结构坚固，可靠性高，广泛用于化工，石化等工业中。能耐压到3000 psi (206 bar)。回差可低至满量程的5%。典型的应用场合为根据液位来控制水泵的启停。设定点值和回差都是可调的，可透过透明的聚碳酸酯面板观察到，这些都和开关电路部分隔离，更加安全。只需7/16″六角扳手就能调整设置。采用接线端子排接线，内外都带有接地螺丝。标准的外壳防护为提供了内部接线和外部接地，包括内外螺纹连接。标准防护为NEMA4X全天候防护；NEMA 7 防爆防护Class I,Groups B, C & D; NEMA 9,Class II,Groups E, F & G。可选择带泄放阀，防护等级为IP54。

SA11膜片压力开关选型表

EXAMPLE	SA11	11	E	A	4	K	1	AT	Series SA1111E-A4-K1-AT Diaphragm Operated Pressure Switch, adjustable range 10-150 psig, SPDT snap switch, aluminum pressure chamber, Buna-n diaphragm and o-ring, 1/4" female NPT, with ATEX certified construction.
SERIES	SA11								Diaphragm Operated Pressure Switch
ADJUSTABLE RANGE		11 12 13							10-150 psig (0.7-10 bar) 20-250 psig (1.4-17.2 bar) 30-500 psig (2.0-34.0 bar)
CIRCUIT (SWITCH) OPTIONS			E HS HG						Snap Action Switch, Rated 15A @ 125/250/480 VAC Hermetically Sealed Snap Switch, Rated 5A @ 125/250 VAC Hermetically Sealed Snap Switch with Gold Contacts, Rated 1A @ 125 VAC
PRESSURE CHAMBER MATERIAL (WETTED)				A B S					Aluminum Brass 316SS
DIAPHRAGM MATERIAL (WETTED)					4 5				Buna-N Diaphragm and O-ring Fluorocarbon Diaphragm and O-ring
CIRCUIT (SWITCH) TYPE						K L			SPDT DPDT (not available with HS or HG switch options)
PROCESS CONNECTION							1 2		1/4" Female NPT 1/2" Female NPT
OPTIONS								AT DRAIN IEC ST PRESET	ATEX Approved Housing with Drain (allows condensate to be drained) IECEx Approval Stainless Steel Tag Preset
